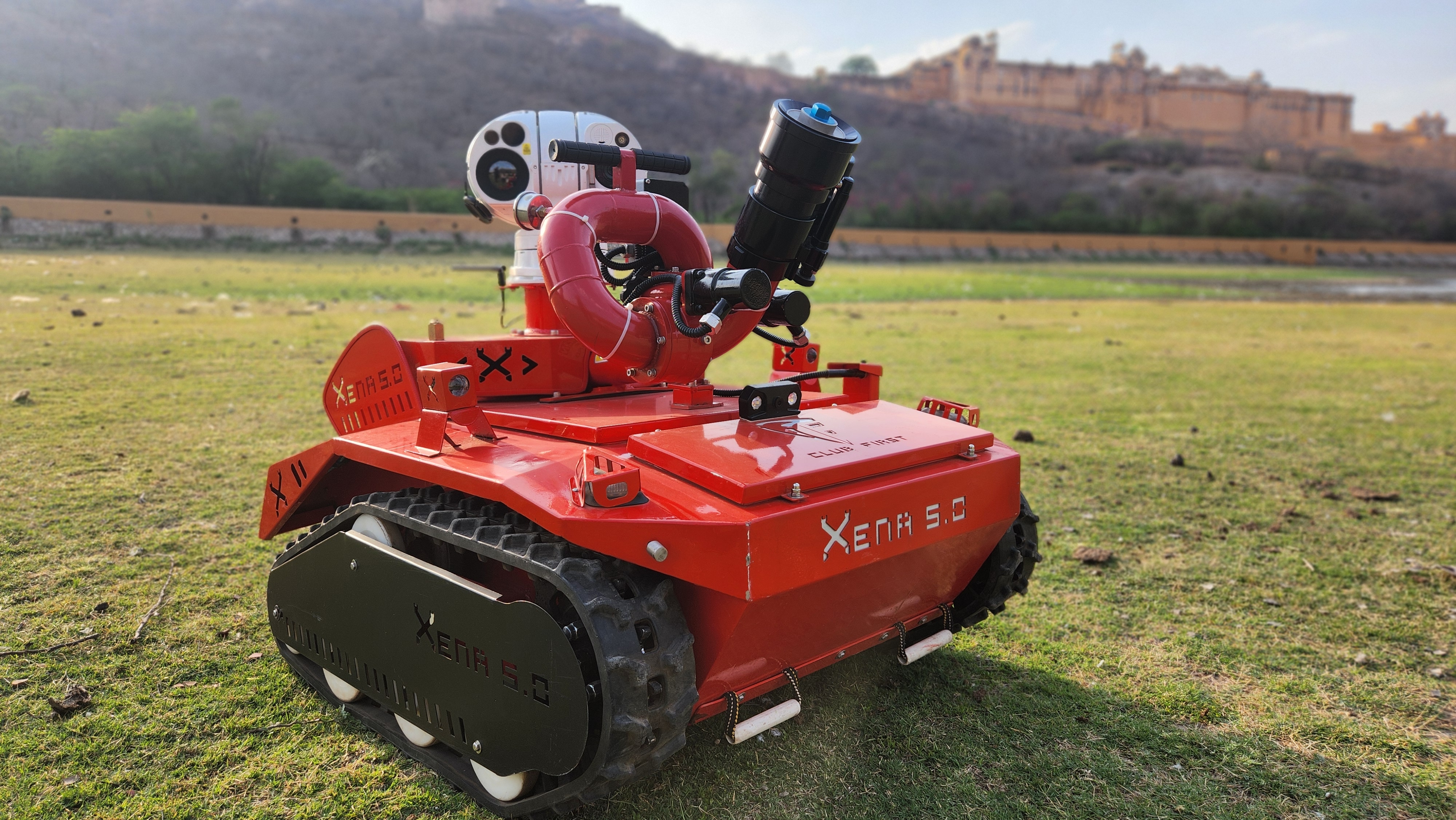

Model:  XENA™ 5.0 Fire Fighting Robot
Applications: Disaster Management, Fire Fighting, Rescue, Roit Control

• Most powerful and compact
• Adaptive Braking Technology
• 500 Kg Payload
• 7 Ton Vehicle and 100 M two Charged hose dragging capacity
• Iron Core rubber track 25MM thick
• 5-6 Hr Endurance 48V/ 72 AH Battery
• Hot attached power bank
• Short turning and easy-to-control straight line & angular 360  gyro
• Individual differential gear for each drive
• Gyro based on Straight line and angular following algorithm
• Designed for Defense
• Most powerful and compact
• Most rugged and robust
• Make in India with full control system and controllers
• Short turning and easy-to-control straight line & angular 360  gyro
• Individual differential gear for each drive
• Straight line and the angular following algorithm
• Automatic fire point detection & alarming
• Water & Foam firefighting monitor
• PTZ Thermal remote-controlled Camera
• Anyone can operate our robot in one minute of training

Key Parameter:
• The XENA ATV platform Robot Xena 5.0 has a top speed of 8 km/H
• Compact Design for heavy-duty work
• Heavy Duty spiral iron core wire rubber Track
• Track belt suspension
• BLDC Heavy duty motors
• Rc 300 Meter Range
• Heat and overload protection
• Efficiency Exhaust protection

• 120 Kg Payload capacity

• 180 Kg Drag capacity (UP to 5 Ton Vehicle)
• Climb to possible stairs and elevations
• Fast Charging system
• All-terrain Vehicle Technology

Technical Specification:
Robot Base: 1.5, MM 3 MM dual GI /MS powder coated base

Body Material: 1.5mm thick GI/MS for heavy-duty work

Dimension: Xena 5.0 can fit a box of (1280 x 860 x650) L x W x H in MM (Robot Vehicle Only)

Total Weight: 240 Kg

Working Temperature: --20°~+95°   Up to 500˚ in Self Cooling

Climbing Slope Angle: ≤45˚

Climbing Stairs Angle: ≤30˚

Fire Monitor:

• Remote Controlled monitor 1800-3000LPM
• Flow Cap @ Up to 10 Kg/Cm2
• Vertical Movement +25 to 85 Degree
• Horizontal movement ±180 Degree
• Both ATV and Monitor are controlled with a single Remote controlled
